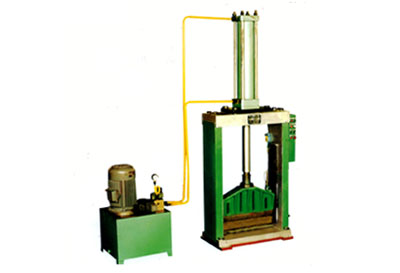

Single-blade Rubber Cutting Machine

主要技术参数
Main techincal parameter

产品型号
Type
XLQ-8
切胶机宽度（mm)
Width
660
切胶机行程（mm）
Stroke
680
油缸直径（mm)
Diameter of the piston
150
切胶机行程时间（s)
Time Taken by the stroke
16-25
功率（KW)
Power
5.5
外形尺寸（长×宽×高）
Overall Dimension
1900×720×25
重量（kg)
Weight
1500
